Silicon dade C core .
Brand: Promisteel .
Nneɛma a ɛyɛ den: 0.05mm,0.08mm,0.23mm,0.27mm,0.3mm,0.35mm
MOQ: 25tons .
Nneɛma a wɔde di dwuma: Wɔde di dwuma kɛse wɔ anyinam ahoɔden nneɛma te sɛ 50-10KHz transformers, mprempren transformers, reactors, ne chokes wɔ tumi ɛlɛtrɔnik mfiri mu.
Nneɛma a ɛwɔ hɔ: 10000 ton/ɔsram
Nneɛma a wɔde kɔma: nnafua 20-45 .
Katua: T/T, L/C, ne nea ɛkeka ho .
Nneɛma a wɔyɛ ho nkyerɛkyerɛmu .

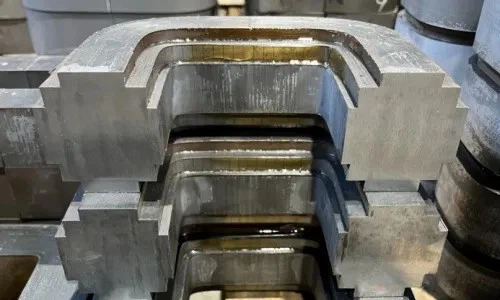

Silicon dadeɛ a ɛwɔ mu C core .
Silicon Steel C core yɛ magnetic core bi a wɔde di dwuma titiriw ma anyinam ahoɔden a wɔde di dwuma, a nea ɛka ho ne transformers, inductors, ne magnetic coils. Wɔtaa de silicon dadeɛ na ɛyɛ na wɔyɛ no "C" nsusuiɛ mu sɛdeɛ ɛbɛyɛ a ɛbɛma magnetic flux akwan a ɛyɛ adwuma yie, atu mpɔn wɔ adwumayɛ nyinaa mu wɔ anyinam ahoɔden mfiri ahodoɔ mu. Wɔ silicon dadeɛ a ɛwɔ mu no mu no, C core design no da nsow wɔ sɛnea ɛyɛ adwuma yie na ɛyɛ adwuma yie wɔ electromagnetic dwumadie mu.
Nneɛma a wɔyɛ .
Bere a wɔapirapira silicon dade no na wɔayɛ no awie no, wɔyɛ no core a wɔato mu denam ɔhyew a wɔde yɛ adwuma, impregnation, ne nneɛma afoforo so. Afei, wɔbɛtwa saa core a wɔato mu yi ayɛ no C{1}}nsuo a ɛyɛ fɛ mmienu.
ahorow ahorow .
Silicon dade a wɔde yɛ aburow C core .
Wɔayɛ aburow-silicon steel C cores a ɛwɔ hɔ no sɛnea ɛbɛyɛ a wɔn aburow no bɛyɛ pɛ wɔ ɔkwan biako so na ama magnetic su ayɛ kɛse. Wɔnam ɔkwan titiriw bi a wɔfa so yɛ nneɛma a ɛfa awɔw a wɔde twitwiw dade no ho wɔ ɔkwan pɔtee bi so so na ɛba saa nhyiam yi so. Nnuadewa no ne ɔkwan a ɛkɔ so no hyia, na ɛma magnetic permeability tu mpɔn na ɛtew core losses so. Saa silicon steel core yi na wɔtaa de di dwuma wɔ soro-efficiency transformers ne application afoforo a directional magnetic properties ho hia.
Non grain oriented silicon steel c core .
Non{0}}Grain oriented silicon steel c cores yɛ silicon dadeɛ cores a wɔtaa de di dwuma wɔ anyinam ahoɔden mfiri mu a akwankyerɛ magnetization ho nhia anaasɛ ɛho hia. Nea ɛnte sɛ wɔn aburow-oriented counterparts, non{3}}Grain oriented c cores wɔ randomly oriented grains a ɛma isotropic magnetic su a ɛfata ma application ahorow.
Parameter .
Hyɛ no nsow: Yɛboa customization sɛnea customer ahwehwɛde specifications. Sɛ wopɛ ho nsɛm pii a, yɛsrɛ wo, di yɛn ho nkɔmmɔ tẽẽ.
Su a ɛwɔ hɔ .
Wobetumi ayɛ flux kwan a wɔato mu a ɛwɔ ɔdan a wɔabue mu denam fã abien no a wɔbɛka abom so. Bobbin ne core no betumi ayɛ no soronko na afei wɔde core no ahyɛ bobbin no mu, a ebetumi atew bere a wɔde yɛ no so yiye.
Cores nyinaa, gye sɛ wɔakyerɛ sɛ, ankorankoro asɔ ahwɛ sɛnea ɛbɛyɛ a ɛbɛma wɔanya awerɛhyem sɛ quailfy ɔman gyinapɛn ne nsɛm a wɔakyerɛw. Wobetumi ayɛ sɔhwɛ titiriw denam adetɔfo abisade ahorow so.

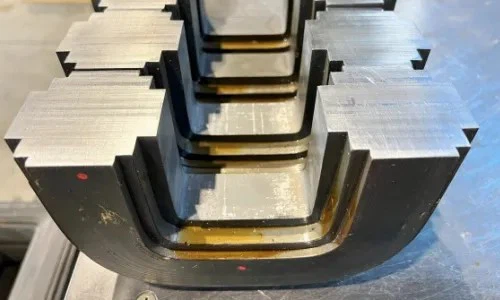

C-nhyehyɛe titiriw .
C-core nhyehyeɛ no yɛ nsusuiɛ a ɛte sɛ nkyerɛwdeɛ "C." Saa nsusuwii yi ma kwan ma winding a etu mpɔn a ɛwɔ transformer coil no mu twa core no ho hyia.
magnetic ahoɔden .
Wɔpaw silicon dade esiane ne magnetic su nti, titiriw no tumi a ɛma ɛyɛ magnet na ɛma ɛyɛ mmerɛw ntɛmntɛm no. Saa agyapade yi ho hia ma transformers no dwumadi.
Eddy current losses a ɛso tew .
Sɛnea wɔayɛ C cores no boa ma eddy current losses no so tew. Eddy currents yɛ circulating currents a ɛba wɔ core material no mu esiane magnetic field a ɛresakra no nti, na ɛboa ma ahoɔden yera wɔ ɔhyew mu.
Transformer a ɛyɛ adwuma yiye a ɛma ɛyɛ yiye .
C cores di dwuma wɔ transformers a ɛyɛ adwuma yiye no mu. Ɛdenam nneɛma a wɔhwere a wɔtew so so no, wɔboa ma anyinam ahoɔden fi primary no mu kɔ nea ɛto so abien no mu yiye.
Abisadeɛ
silicon steel c-cores som sɛ .Ɛba fam-ahoɔfɛ magnetic circuits .Saa channel no flux yiye wɔ electromagnetic nhyiam horow mu. Ɛdenam coil windings a wɔde bɛka wɔn c-nhyehyɛe no ho so no, saa cores yi .Ɛtew core losses so kɛse .Wɔkyerɛ sɛ ɛyɛ hysteresis ne eddy currents. Saa nhyehyɛe yi a wɔayɛ ho nhyehyɛe .Ɛma magnetic coupling density yɛ kɛse ., a ɛde ba .Tumi a ɛkorɔn a wɔde fa nnipa mu no yɛ adwuma yiye .neƆhyew a ɛba fam a ɛba fam .Bere a wɔreyɛ adwuma no. Nnwuma mu dwumadie titire a wɔde di dwuma no bi ne:
Transformer nhyehyɛe ahorow .
Nneɛma a ɛho hia wɔ tumi a ɛsakra, kyekyɛ nsakrae, ne isolation transformers mu ma .Ɔsoro-Ahoɔden a ɛyɛ adwuma yiye nsakrae .ne flux leakage a ɛba fam.
Inductive afã horow .
Ɛho hia ma reactors, filtering chokes, ne soro-frequency inductors a ɛhwehwɛ .Magnetic permeability a ɛyɛ pɛpɛɛpɛ .neWatt a ɛyera a ɛba fam ..
Electric Motor Engineering .
a wɔde ahyɛ stator/rotor laminations mu akɔ .Optimize magnetic flux akwan ., torque density a ɛma ɛyɛ kɛse ne ahoɔden a wɔde di dwuma yiye wɔ mfiridwuma mu mfiri mu.
Nkate ano aduru a ɛkɔ anim .
Wɔde di dwuma wɔ kar gyinabea sensor ahorow, mprempren transducers, ne mfiridwuma IoT mfiri ahorow mu .Stable magnetic field awo ntoatoaso ..
Tumi Nsakrae Module ahorow .
Fapem wɔ switch-Mode Power Supplies (SMPs) ne inverter nhyehyɛe a ɛwɔ hɔ .Saturation flux density a ɛkorɔn .(ɛkɔ 1.8T) hwɛ ma wotumi yɛ adwuma a wotumi de ho to so.
Tags a ɛyɛ hyew .: Silicon Steel C Core, China Silicon Steel C Core Nneɛma a Wɔyɛ, Wɔn a Wɔde Ma
